OrCAD Capture(R) CIS option

SKU: PO1120

alt text
alt text
alt text

OrCAD Capture(R) CIS option includes:

     Live BOM

alt text

     Design Variants

alt text

     Flat and Hierarchical Design

alt text

     Unified Search

alt text

     Integration with PSpice

alt text

     Integrations with SnapMagic

alt text

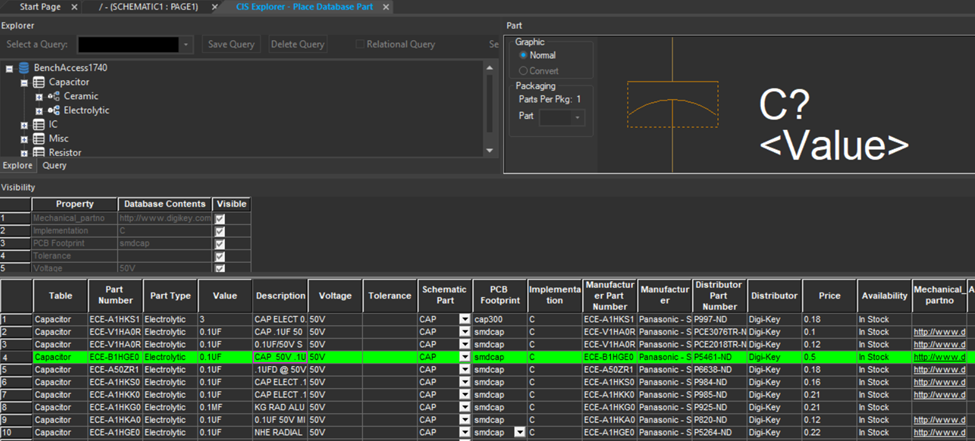

OrCAD Capture ® CIS (Component Information System) enhances the schematic entry capabilities of OrCAD Capture by integrating real-time component data directly into the design environment. Widely used across industries, it simplifies the process of entering and documenting electrical circuits while ensuring consistency between design and part databases. Engineers can work with flat or hierarchical schematics and easily navigate between pages using the intuitive interface. CIS streamlines part selection, enforces design standards, and supports centralized library management-reducing errors and improving efficiency throughout the product development cycle.

Download Specifications File
