OrCAD (R) PCB SI

SKU: PO3400

OrCAD (R) PCB SI includes:

     Design Variants

     Flat and Hierarchical Design

     Unified Search

     Integration with PSpice

     Integrations with SnapMagic

     Pre- and post-layout capabilities enable signal integrity exploration and analysis at any stage of the design cycle

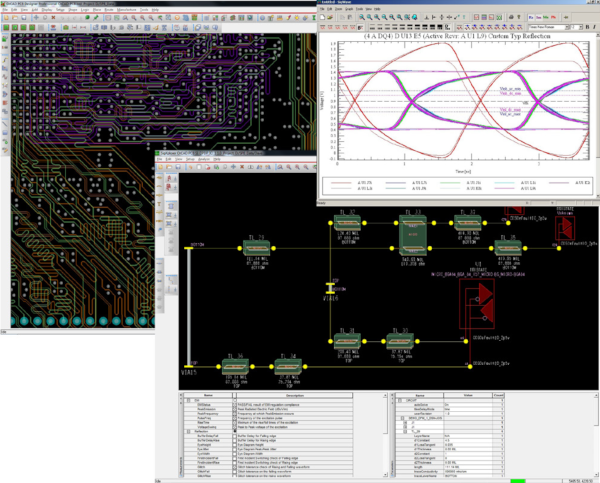

OrCAD (R) PCB SI delivers powerful simulation technology to help you find and address signal integrity issues throughout the design process - from conceptual circuit design in the schematic to board placement and routing. It enables pre- and post-layout topology exploration, signal analysis, and validation, allowing you to increase circuit reliability and drive known-good inter-connect requirements throughout the PCB design flow to help reduce re-spins.
