OrCAD Sigrity ERC

SKU: PO3420

OrCAD Sigrity ERC includes:

     No models required

     Easy to run by PCB layout designers

     Detects steps in PCB impedance

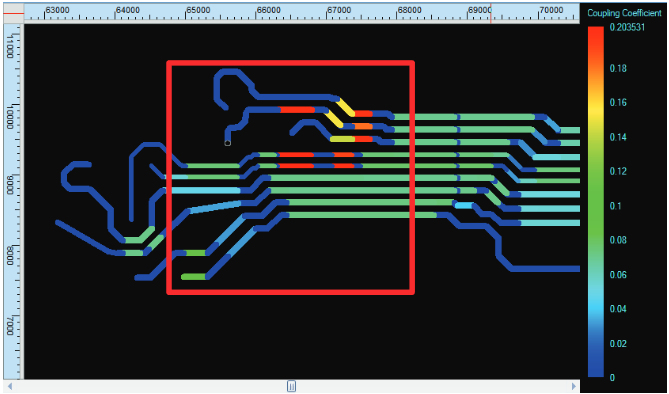

     Detects PCB trace coupling

     Integrated with OrCAD PCB Designer

OrCAD(R) Sigrity (TM) ERC (Electrical Rules Check) provides electrical rules checking technology that enables the PCB layout designer to easily and quickly identify signal quality issues and causes without the need for simulation models or extensive signal integrity expertise. Built using industry- and market-leading Cadence Sigrity technology, OrCAD Sigrity ERC goes beyond simple geometry-based design-rule checking (DRC), identifying signal quality issues that have typically only been uncovered by advanced SI/PI tools. OrCAD Sigrity ERC is fully integrated with the OrCAD PCB Editor, allowing PCB designers to see issues within the PCB canvas, make a change, and validate the ERC has been corrected.

Download Specifications File
